Tubular Type UHT Milk Sterilization Machine









Key attributes

Other attributes

Applicable Industries

Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops

Showroom Location

Egypt, Malaysia

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC, Bearing, Pressure vessel, Gear, Pump

Place of Origin

Zhejiang, China

Weight

Warranty

1 year

Processing

Sterilizer

Condition

New

Brand Name

VINCE

Model Number

VINCE

Processing Types

Automatic sterilizing of milk, juice, beverage and other liquid

Voltage

380V/50HZ,3P/220V/60HZ,3P or customized

Power

1.9-11KW

Dimension(L*W*H)

Based on actual volumn

After-sales Service Provided

Overseas third-party support available

Material

SS304/316

MOQ

1unit

Packaging and delivery

Selling Units:

Single item

Single package size:

260X100X240 cm

Single gross weight:

900.000 kg

Lead time

Quantity (pieces)	1 - 100	101 - 500	> 500
Lead time (days)	20	30	To be negotiated

Customization

Customized logo

Min. order: 1

Customized packaging

Min. order: 1

Graphic customization

Min. order: 1

Overview

Video Description

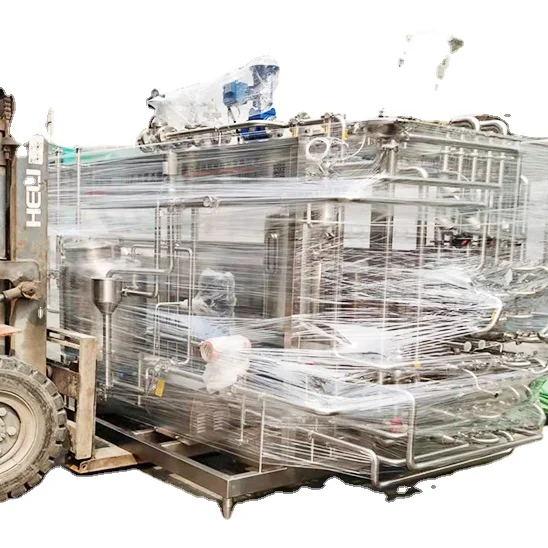

Tubular Type UHT Milk Sterilization Machine

Product Description

UHT high temperature instantaneous sterilizer is widely used in the sterilization of milk, fruit juice, tea drinks and other products. UHT sterilizer integrates heating, sterilization, cooling and heat recovery. The touch screen displays real-time production data online. This equipment is suitable for continuous sterilization of fruit and vegetable juice, tea beverage, milk beverage or similar materials. It can carry out high-temperature instantaneous sterilization of materials and rapid sterilization in a very short time, so as to ensure that the nutritional components of materials are not damaged and lost, and the product color is not changed.

The main body of HT high temperature instantaneous sterilizer is divided into: hot and cold material heat recovery section, preheating section, sterilization temperature holding section and cooling section. The whole sterilization process is fully automatic control, and the sterilization temperature can be flexibly set on the man-machine interface. The fluctuation of temperature difference between upper and lower sterilization temperature during production shall not exceed 0.5 ℃ Equipped with pressure multifunctional tank, it can buffer material and material reflux during production, and can be used as CIP cleaning tank after production.

Specifications

1. Material : SUS304/316

2. Capacity/Flow: 1~20T/H

3. Motor power: 1.9-11KW

4. quick sterilizing for food fluid

Capacity (t/h)	Steam Consumption (kg/h)	Steam Pressure (bar)	Power (kw)	Dimension *(LWH)*	Weight (kg)
1	130	2.5	1.9	3.3×1.6×1.8	1490
2	260	2.5	2.1	3.3×1.6×1.8	1590
3	390	2.5	3.0	3.5×1.8×2.0	1630
4	520	2.5	3.0	3.5×1.8×2.0	1870
5	650	2.5	3.0	3.5×1.8×2.0	2060
6	780	2.5	3.0	3.5×1.8×2.0	2250
8	1040	2.5	3.7	4.5×2.0×2.0	2500
10	1300	2.5	5.2	4.5×2.0×2.0	2800
15	1950	2.5	7.0	6.5×2.0×2.2	3500
20	2600	2.5	11.0	6.5×2.0×2.2	4300
