Small Capacity Dairy Products Processing Equipment

Product Description

Specifications

1 International advanced level 2 High quality milk sterilizing machine 3 Favorable factory price 4 High reputation

Brief introduction

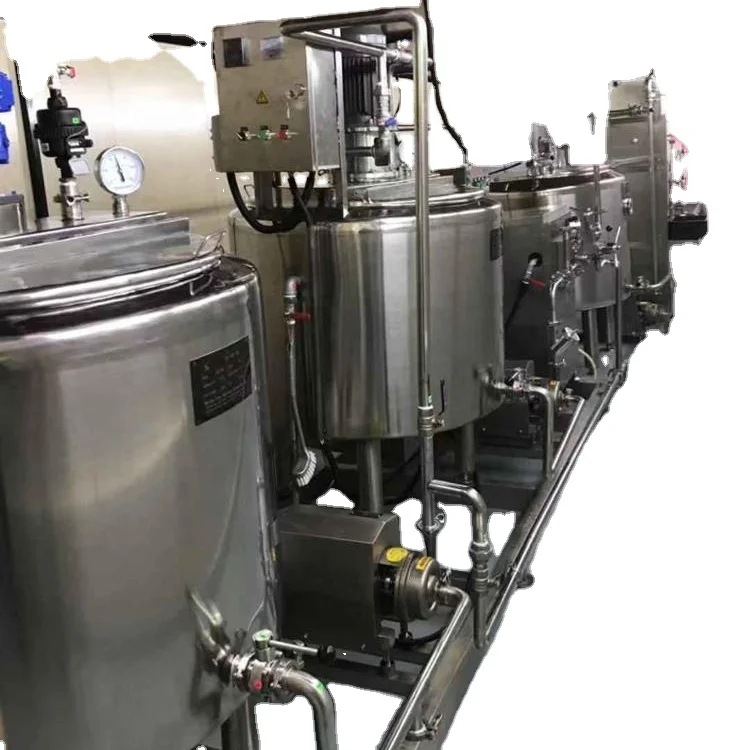

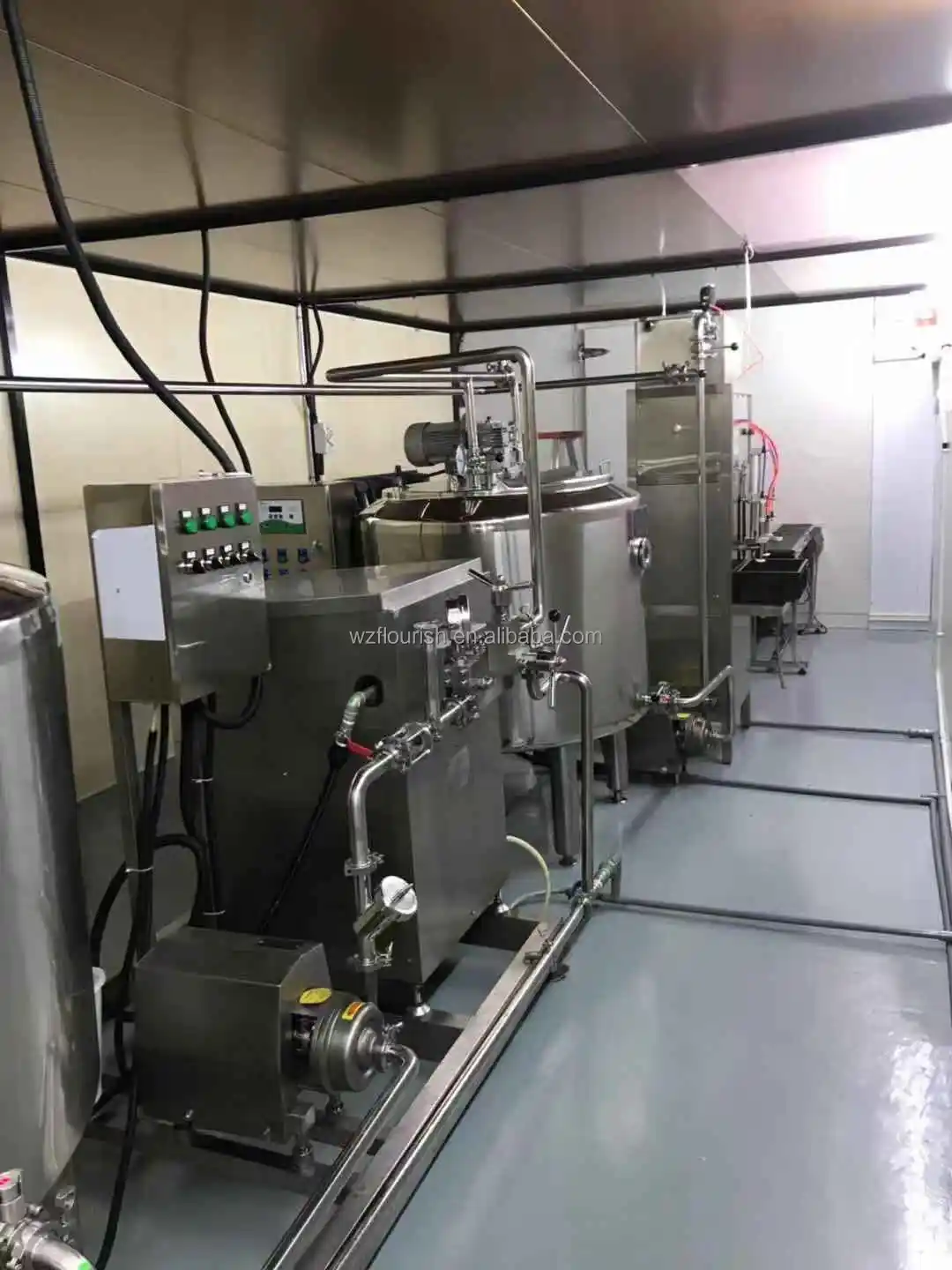

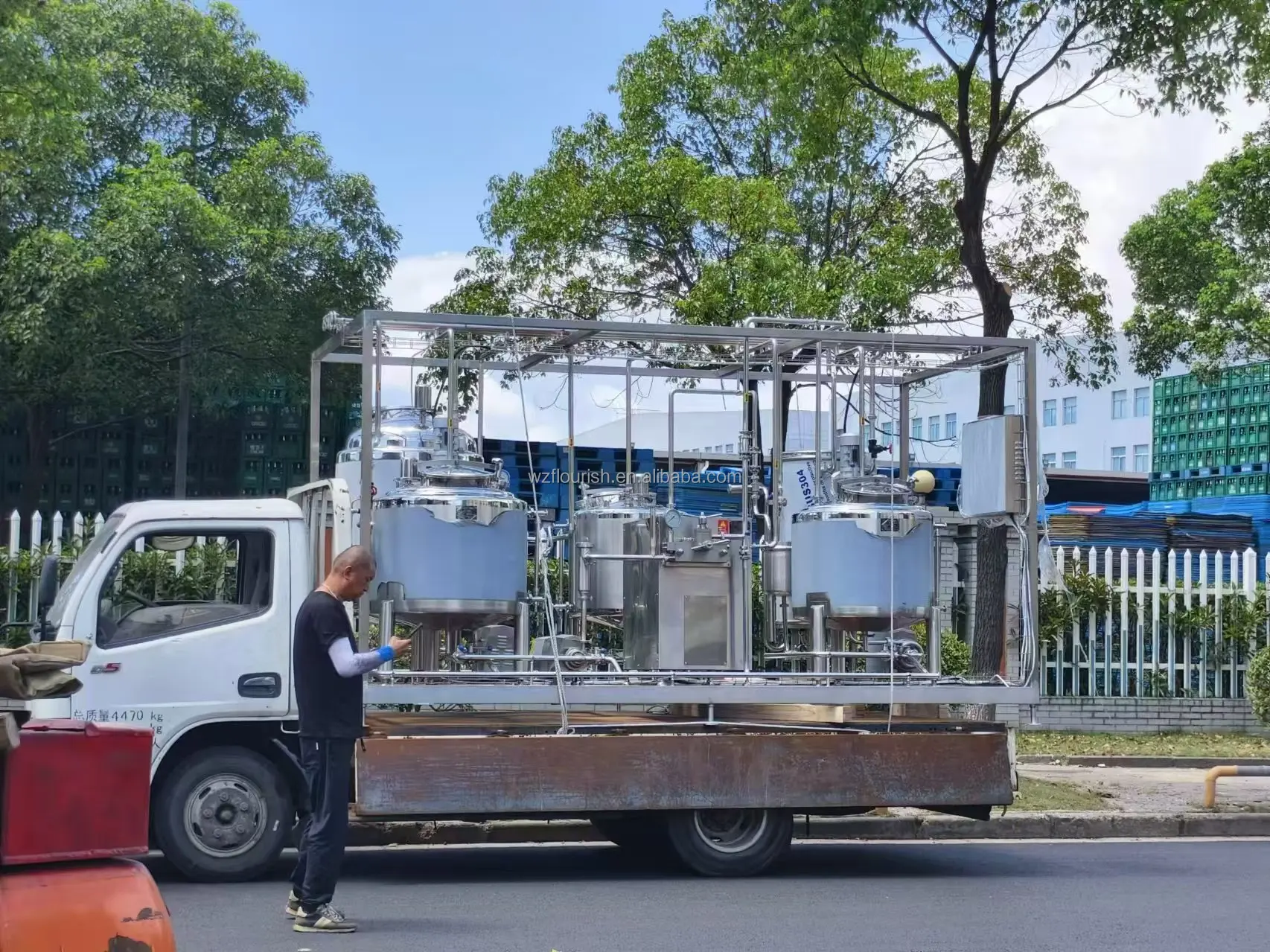

This small dairy homogenizer pasteurization machine is customized for small business, it is consisted of mixing heating tanks, buffer tank, sanitary pump, homogenizer, UHT sterilizer and finished goods tank. All these machines will be installed on a machine frame before delivery to save abroad installation cost.

With this small production line, the tanks quantity and other machine capacity can be customized based on client's requirement and actual production requirement.

And the running energy is steam and electric heating, two types, also can be customized.

With this UHT Milk processing equirement, we can produce flavored milk, juice, yogurt and other products.









The Technical Parameters of UHT sterilizer as follows:



Model name UHT-1 UHT-2 UHT-4 UHT-6
Production capacity(kg/h) 800-1000 1600-2000 3200-4000 4800-6000
Sterilizing time(s) 4-6S 4-6S 4-6S 4-6S
Sterilizing temperature 115~135 °C 115~135°C 115~135 °C 115~135°C
Steam pressure(MPa) <0.4 <0.4 <0.5 <0.5
Steam consumption(kg/l) 0.15 0.15 0.15 0.15
Material outlet temperature 45-85 °C 45-85 °C 45-85 °C 45-85 °C
Pump power(kw) 1.5 2.2 4 5.5
Dimension(mm)
920*920*1400 1100*1100*1700 1200*1200*1800 1400*1400*2000
Weight 380KG 420KG 620KG 800KG
