High Quality Steam/Electic Heating 500-6000L UHT Juice Pasteurizer/Sterilizer
Other recommendations
Key attributes
Other attributes
Food & Beverage Factory, Food & Beverage Shops
None
Provided
Provided
New Product 2020
1 Year
Bearing, Motor
Zhejiang, China
380 KG
1 year
High Productivity
New
VINCE
380V/50HZor customized
1.5-5.5KW
920*920*1400-1400*1400*2000
SS304/316
1unit
500-6000L
Packaging and delivery
Single item
95X95X150 cm
380.000 kg
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 500 | > 500 |
| Lead time (days) | 20 | 30 | To be negotiated |
Customization
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Graphic customization
Min. order: 1
Overview

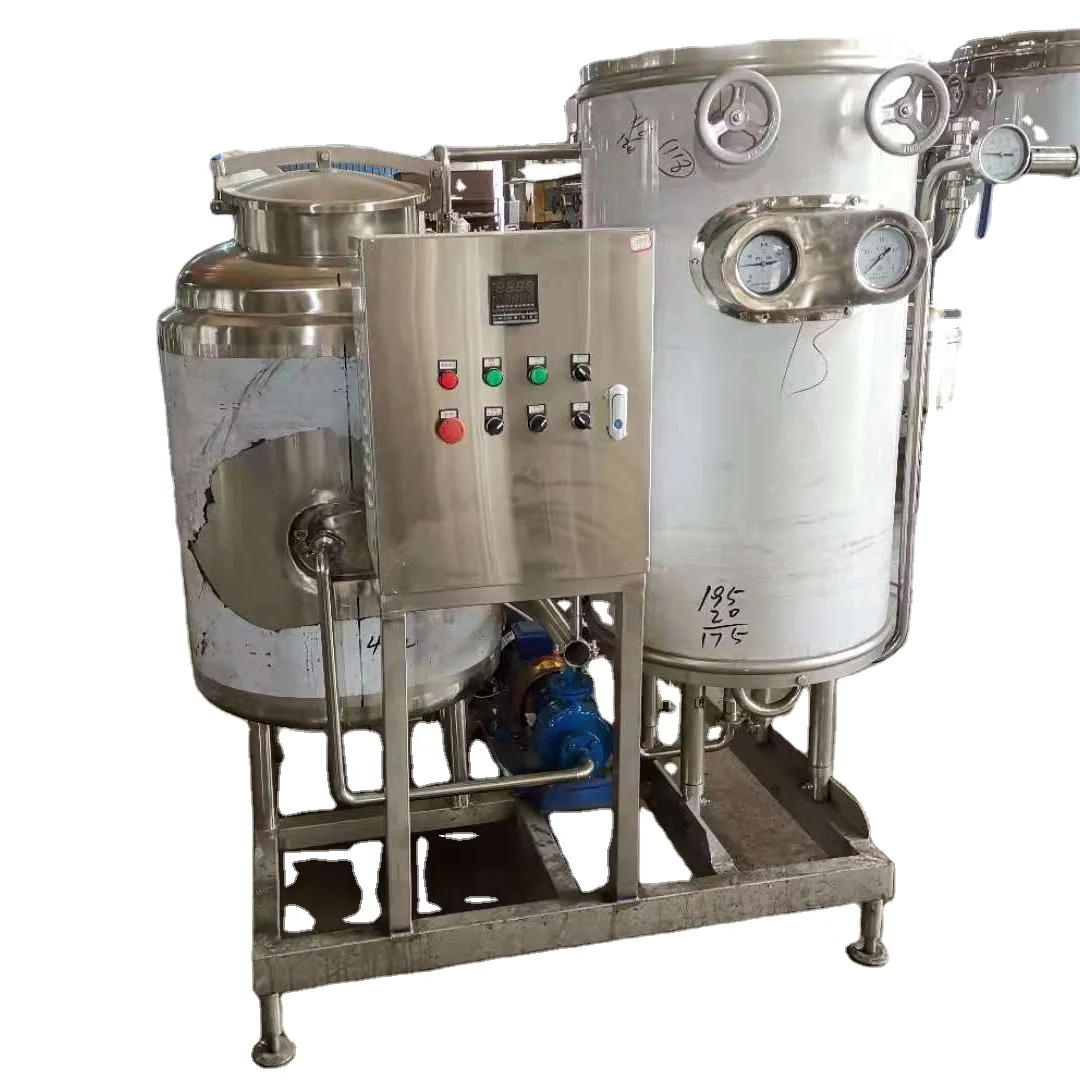

High Quality Steam/Electic Heating 500-6000L UHT Juice Pasteurizer/Sterilizer
Specifications
1 International advanced level 2 High quality milk sterilizing machine 3 Favorable factory price 4 High reputation
Brief introduction
The Steam/Electic Heating 500-6000L UHT Juice Pasteurizer/Sterilizer is applicable to high temperature instant sterilization of liquid materials such as milk,soy milk and fruit juice etc.It has such features as high efficiency,energy saving,simple operation and good sterilizing effect etc.
Technical Parameters
| Model name | UHT-1 | UHT-2 | UHT-4 | UHT-6 |
| Production capacity(kg/h) | 800-1000 | 1600-2000 | 3200-4000 | 4800-6000 |
| Sterilizing time(s) | 4-6S | 4-6S | 4-6S | 4-6S |
| Sterilizing temperature | 115~135 °C | 115~135°C | 115~135 °C | 115~135°C |
| Steam pressure(MPa) | <0.4 | <0.4 | <0.5 | <0.5 |
| Steam consumption(kg/l) | 0.15 | 0.15 | 0.15 | 0.15 |
| Material outlet temperature | 45-85 °C | 45-85 °C | 45-85 °C | 45-85 °C |
| Pump power(kw) | 1.5 | 2.2 | 4 | 5.5 |
|
Dimension(mm)
|
920*920*1400 | 1100*1100*1700 | 1200*1200*1800 | 1400*1400*2000 |
| Weight | 380KG | 420KG | 620KG | 800KG |
