High Quality Stainless Steel Liquid Mixing Tank For Yogurt Processing









Key attributes

Other attributes

Applicable Industries

Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops

Showroom Location

Egypt, Malaysia

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

Bearing, Gearbox, Motor

Place of Origin

Zhejiang, China

Weight

800 KG

Warranty

1 Year

Processing

Storage Tank

Condition

New

Brand Name

VINCE

Processing Types

milk, juice, beverage, and other liquid processing

Voltage

380V/50HZ

Power

0.6-15KW

Dimension(L*W*H)

Customized

Warranty

1year

Material

stainless steel304/316

MOQ

1unit

Packaging and delivery

Packaging Details

easy-packing

Port

Shanghai port/ Ningbo port

Selling Units:

Single item

Supply Ability

50 Unit/Units per Month

Lead time

Quantity (pieces)	1 - 100	101 - 500	> 500
Lead time (days)	20	30	To be negotiated

Customization

Customized logo

Min. order: 1

Customized packaging

Min. order: 1

Graphic customization

Min. order: 1

Overview

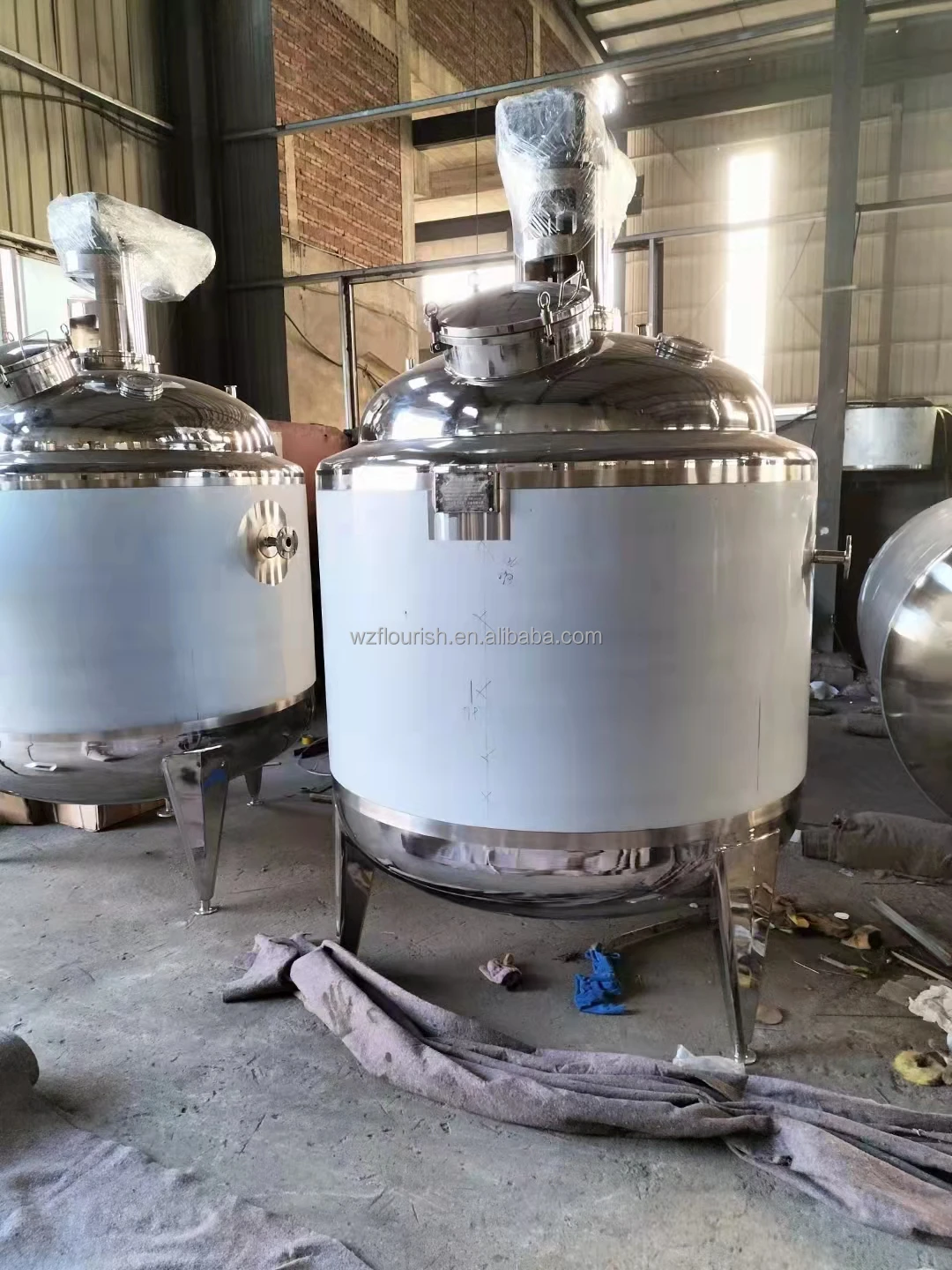

High Quality Stainless Steel Liquid Mixing Tank For Yogurt Processing

Product Description

Base specification

1.Material:ss304,ss316L;

2.Volume:50L-20000L;

3.Surface:Mirror Polish;

4.Type:Vertical and Horizontal.

Structural characteristics

1.Adopt single layer ,double layer ,three layer insulated jacketed

2.All food grade hygienic stainless steel

3.Humanized structure design and easy operate

4.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation

Product technical description

Specification: 100L~30000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.6μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: bottom magnetic agitator
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detail requirement.
Manufacture standard for pressure vessel: GB150-1998, ASME or PED/23/EC

It can be made according to special requirements of customers. Total height (H) is in accordance with outlet height of 800 mm. If outlet height is changed, then total height(H) shall also be adjusted.
