High Experienced Stainless Steel Ball-Shape Syrup Processing Concentrator
Other recommendations
Key attributes
Other attributes
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Food Shop, Food & Beverage Shops
Egypt
Provided
Provided
1 Year
PLC, Bearing, Pressure vessel
Zhejiang, China
800 KG
12months
High Productivity
New
Steam
Vacuum Distillation
VINCE
380V/50HZ,3P/220V/60HZ,30
Based on actual volumn
Based on actual volumn
Engineers available to service machinery overseas
1unit
Packaging and delivery
easy packing/ packed per as request
Ningbo/Shanghai port
Single item
5 Unit/Units per Month
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 500 | > 500 |
| Lead time (days) | 20 | 30 | To be negotiated |
Customization
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Graphic customization
Min. order: 1
Overview
High Experienced Stainless Steel Ball-Shape Syrup Processing Concentrator
This equipment possesses the functions of concentration, crystallization, distillation and alcohol recycling.

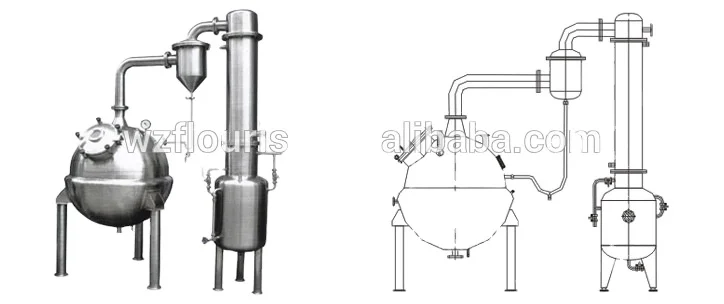

1. This equipment mainly consists of concentration pot, gas and liquid separator, cooler, condenser and collector.
2. To make sure that it is up to GMP standard, this equipment is made of SUS304.
3. By virtue of decompression, the concentrating process is greatly shortened, and the essence of the heat-sensitive material can be well reserved.
Techinical parameters:
| Model | QN-200 | QN-500 | QN-700 | QN-1000 | QN-1500 | QN-2000 |
| Evaporating amount(kg/h) | 60 | 110 | 150 | 200 | 300 | 400 |
| Capacity (L) |
200 | 500 | 700 | 1000 | 1500 | 2000 |
| Steam pressure (Mpa) | <0.1 | |||||
| Vacuum degree(Mpa) | -0.08 | |||||
| Heating area(square meters) | 0.9 | 1.5 | 2.1 | 2.7 | 3.5 | 4.0 |
| Condensing area (square meters) | 1.7 | 3.4 | 5.0 | 7.0 | 8.5 | 10 |
| Dimension (m) | 1.7*0.9*2.3 | 2.3*1.1*2.6 | 2.3*1.3*2.6 | 2.7*1.5*2.9 | 3*1.6*.3 | 3.1*1.8*3 |
