High Efficiency Automatic Stainless Steel UHT Coil Type Juice Pasteurizer









Key attributes

Other attributes

Applicable Industries

Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Energy & Mining, Food & Beverage Shops

Showroom Location

None

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

Bearing

Place of Origin

Zhejiang, China

Weight

Warranty

1 Year

Processing

Sterilizer

Condition

New

Brand Name

VINCE

Processing Types

Sterilizing of milk, juice, beverage and other liquid

Voltage

380V/50HZ,3P/Customized

Power

0.75-6kw

Dimension(L*W*H)

Based on actual volumn

After-sales Service Provided

Overseas third-party support available

Material

SS304/316

Packaging and delivery

Selling Units:

Single item

Single package size:

200X160X1500 cm

Single gross weight:

550.000 kg

Lead time

Quantity (pieces)	1 - 100	101 - 500	> 500
Lead time (days)	20	30	To be negotiated

Customization

Customized logo

Min. order: 1

Customized packaging

Min. order: 1

Graphic customization

Min. order: 1

Overview

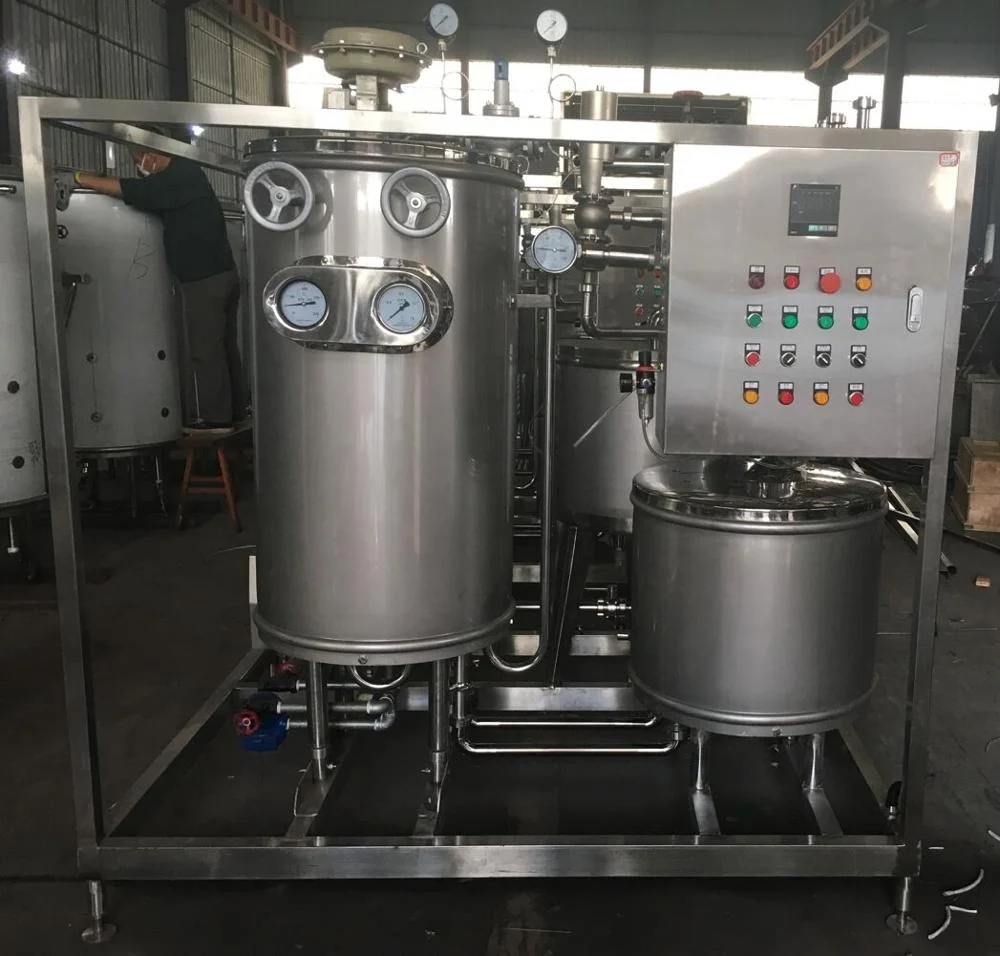

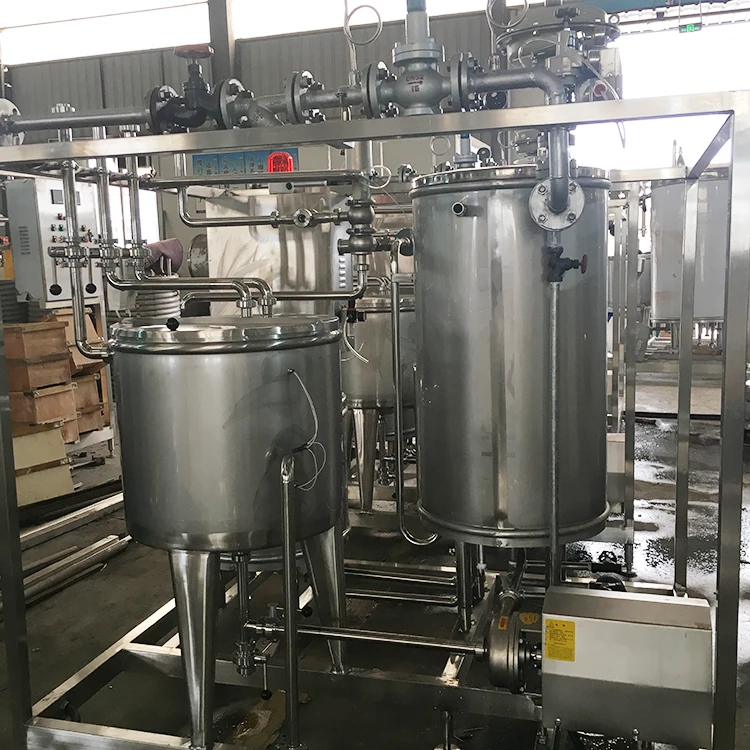

High Efficiency Automatic Stainless Steel UHT Coil Type Juice Pasteurizer

Product Description

Specifications

1 International advanced level 2 High quality milk sterilizing machine 3 Favorable factory price 4 High reputation

Brief introduction

The high efficiency automatic stainless steel UHT coil type dairy juice pasteurizer is applicable to high temperature instant sterilization of liquid materials such as milk,soy milk and fruit juice etc.It has such features as high efficiency,energy saving,simple operation and good sterilizing effect etc.

Technical Parameters

Model name	UHT-1	UHT-2	UHT-4	UHT-6
Production capacity(kg/h)	800-1000	1600-2000	3200-4000	4800-6000
Sterilizing time(s)	4-6S	4-6S	4-6S	4-6S
Sterilizing temperature	115~135 °C	115~135°C	115~135 °C	115~135°C
Steam pressure(MPa)	<0.4	<0.4	<0.5	<0.5
Steam consumption(kg/l)	0.15	0.15	0.15	0.15
Material outlet temperature	45-85 °C	45-85 °C	45-85 °C	45-85 °C
Pump power(kw)	1.5	2.2	4	5.5
Dimension(cm)	13149251650	150010501800	175013502000	140014002000
weight	530KG	550KG	770KG	950KG
