Automatic Tubular UHT Juice Pasteurizer/Sterilizer









Key attributes

Other attributes

Applicable Industries

Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops

Showroom Location

Malaysia

Video outgoing-inspection

Provided

Machinery Test Report

Provided

Marketing Type

New Product 2020

Warranty of core components

1 Year

Core Components

PLC, Bearing

Place of Origin

Zhejiang, China

Weight

1000 KG

Warranty

1 Year

Key Selling Points

Famous brand PLC

Condition

New

Brand Name

VINCE

Voltage

Can be customized

Power

5-20KW

Dimension(L*W*H)

based on actual capacity

Material

SS304/316

After Warranty Service

Video technical support

Application

Juice, milk, pulp, other liquid

Packaging and delivery

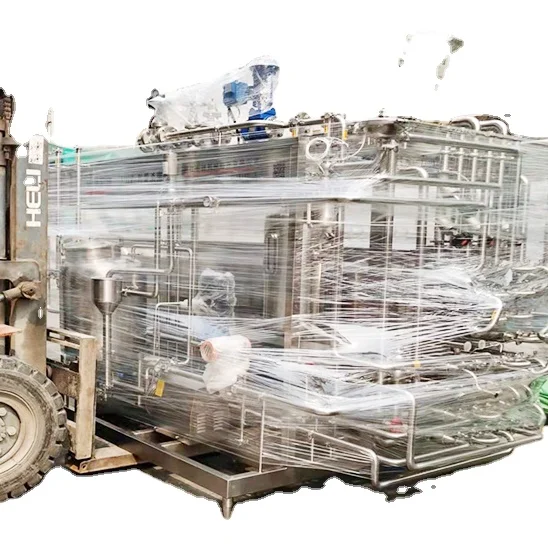

Packaging Details

Wooden case/ normal packing/easy packing

Port

Ningbo/Shanghai

Selling Units:

Single item

Supply Ability

5 Unit/Units per Month

Lead time

Quantity (pieces)	1 - 100	101 - 500	> 500
Lead time (days)	20	30	To be negotiated

Customization

Customized logo

Min. order: 1

Customized packaging

Min. order: 1

Graphic customization

Min. order: 1

Overview

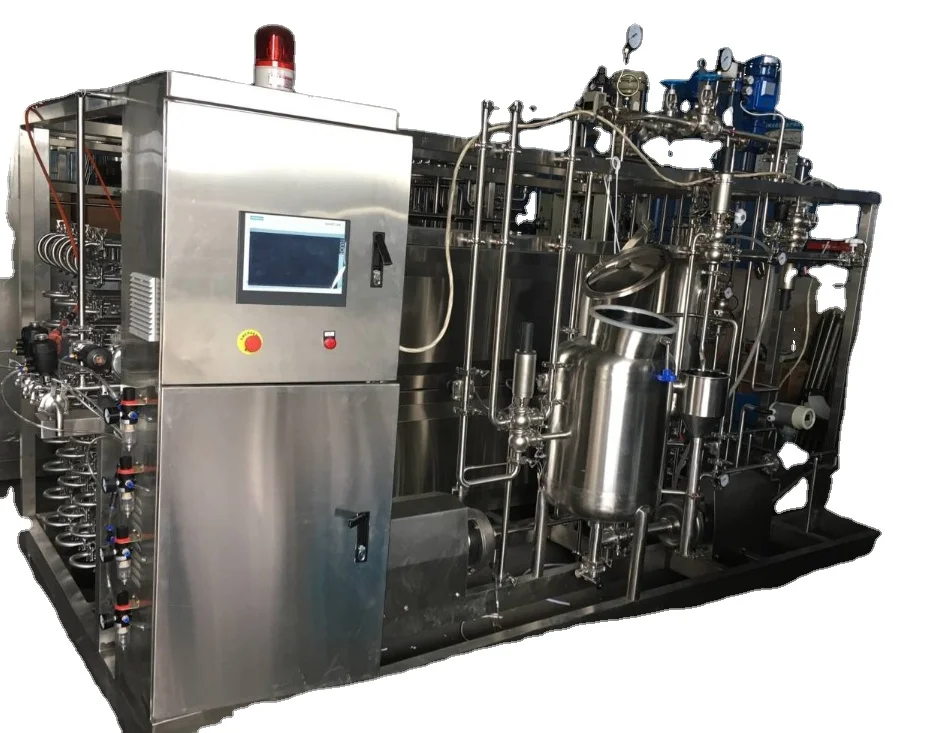

Automatic Tubular UHT Juice Pasteurizer/Sterilizer

Product Description

Specifications

1. Material : SUS304/316

2. Capacity/Flow: 1~20T/H

3. Motor power: 1.9-11KW

4. quick sterilizing for food fluid

Capacity (t/h)	Steam Consumption (kg/h)	Steam Pressure (bar)	Power (kw)	Dimension *(LWH)*	Weight (kg)
1	130	2.5	1.9	3.3×1.6×1.8	1490
2	260	2.5	2.1	3.3×1.6×1.8	1590
3	390	2.5	3.0	3.5×1.8×2.0	1630
4	520	2.5	3.0	3.5×1.8×2.0	1870
5	650	2.5	3.0	3.5×1.8×2.0	2060
6	780	2.5	3.0	3.5×1.8×2.0	2250
8	1040	2.5	3.7	4.5×2.0×2.0	2500
10	1300	2.5	5.2	4.5×2.0×2.0	2800
15	1950	2.5	7.0	6.5×2.0×2.2	3500
20	2600	2.5	11.0	6.5×2.0×2.2	4300
