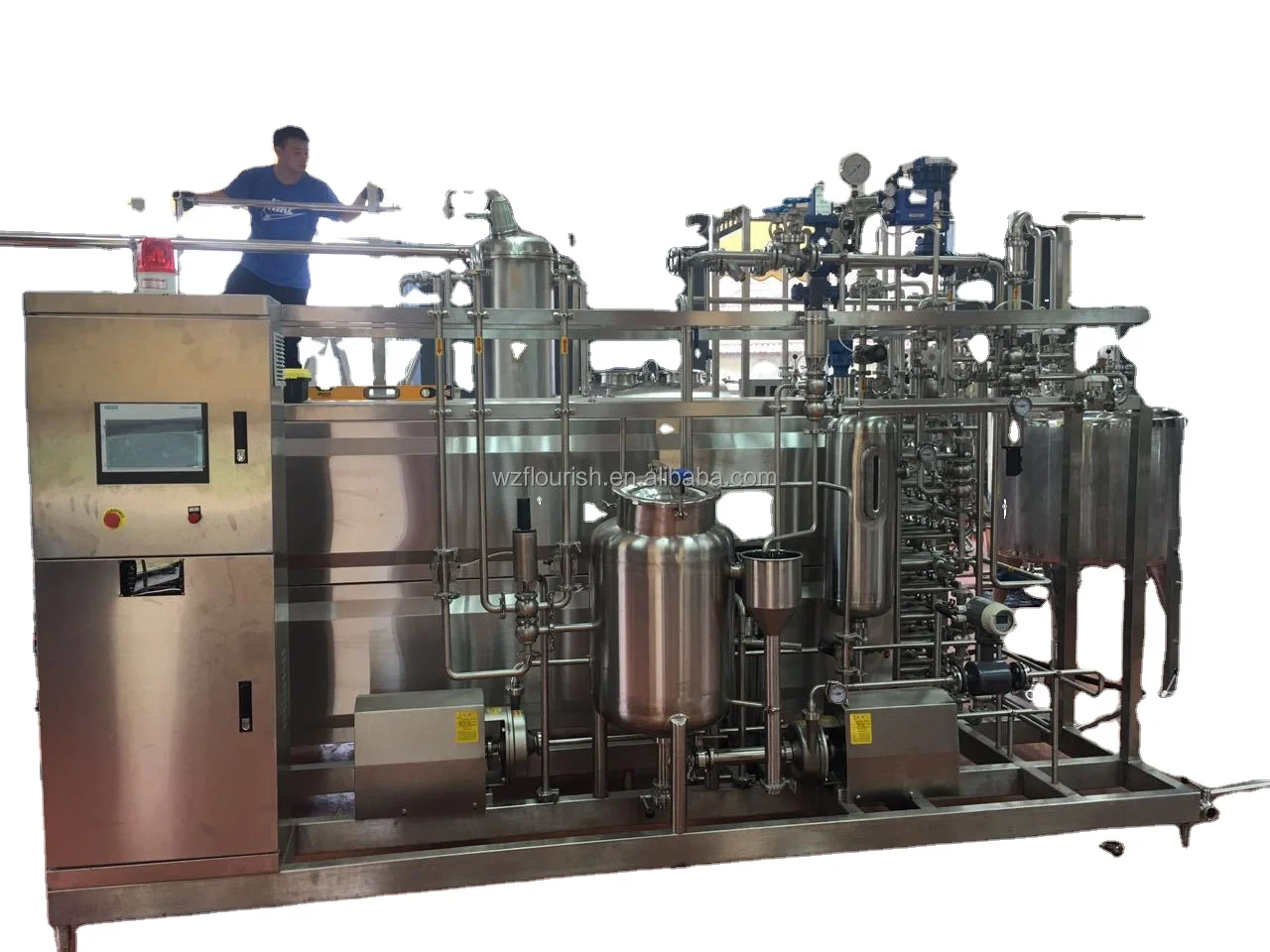

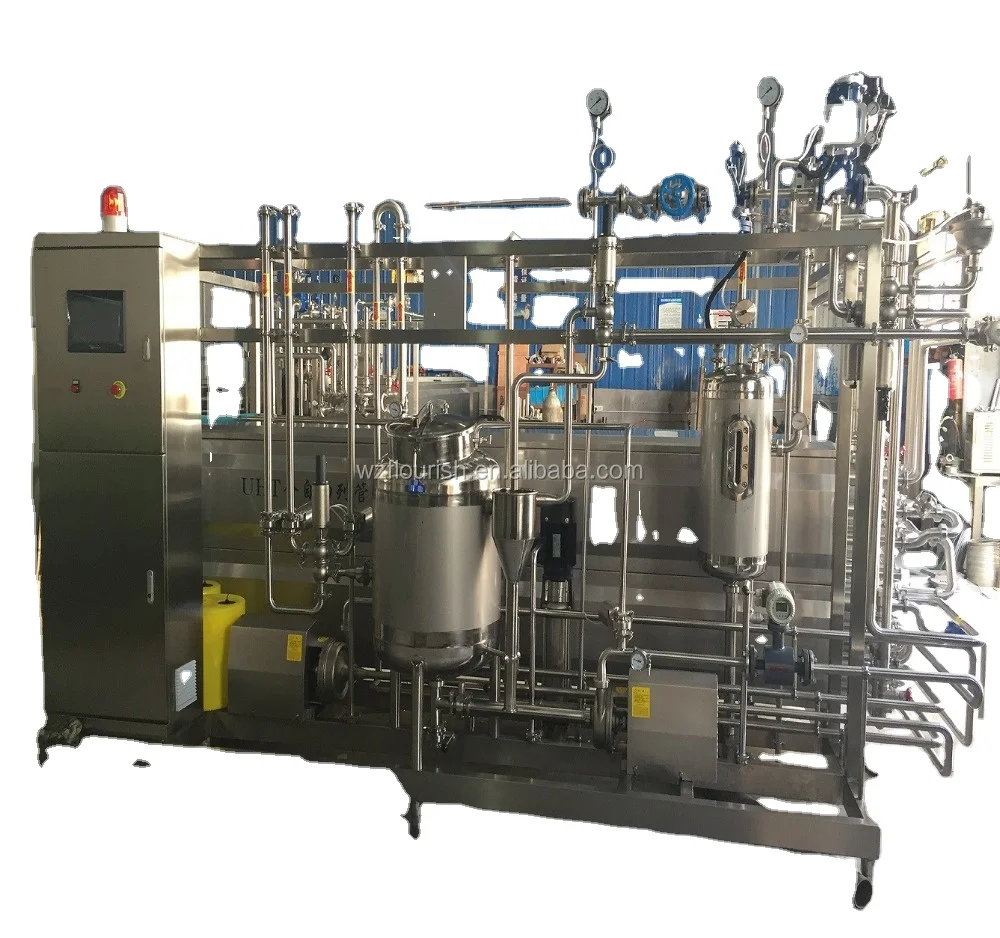

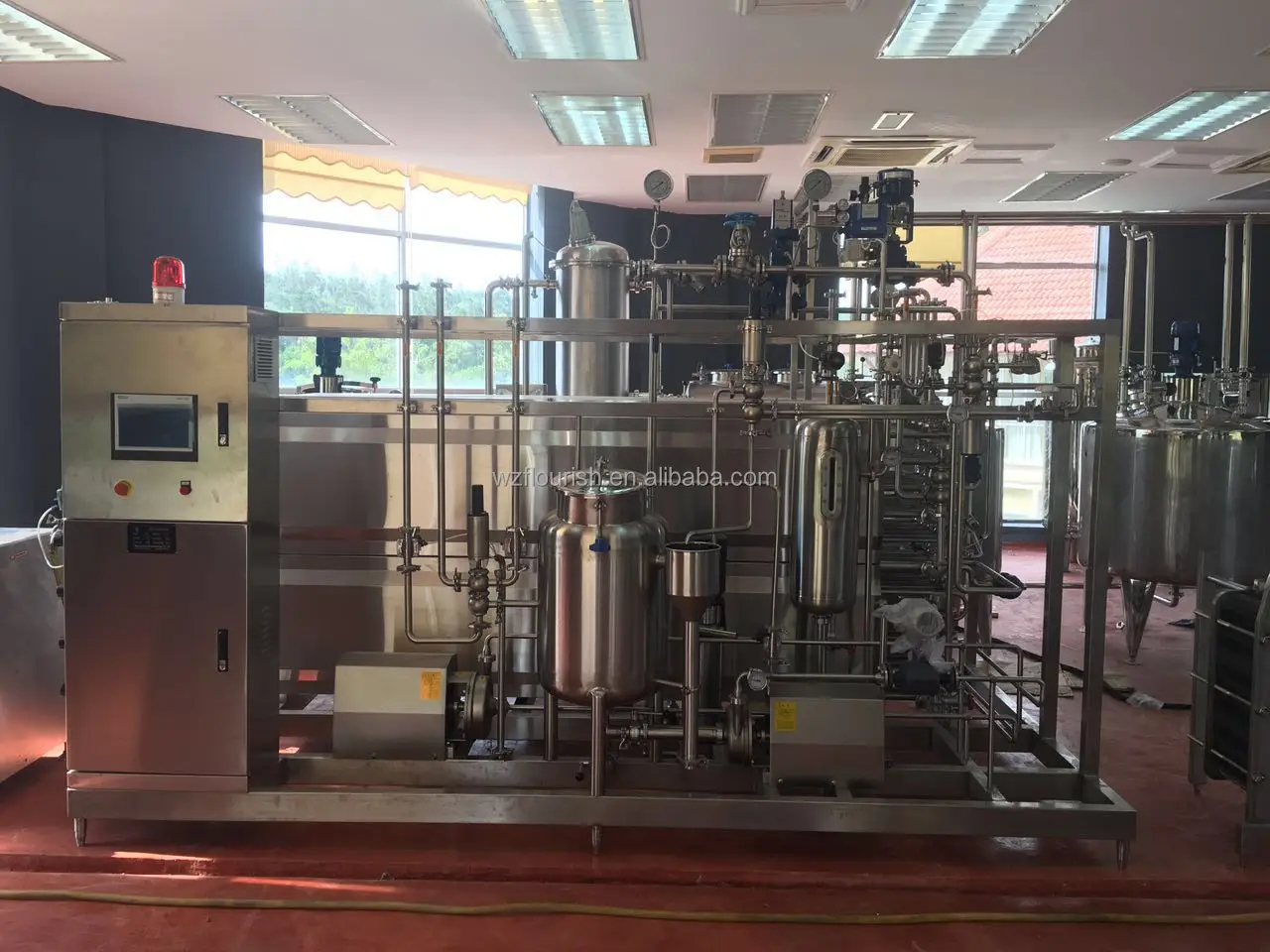

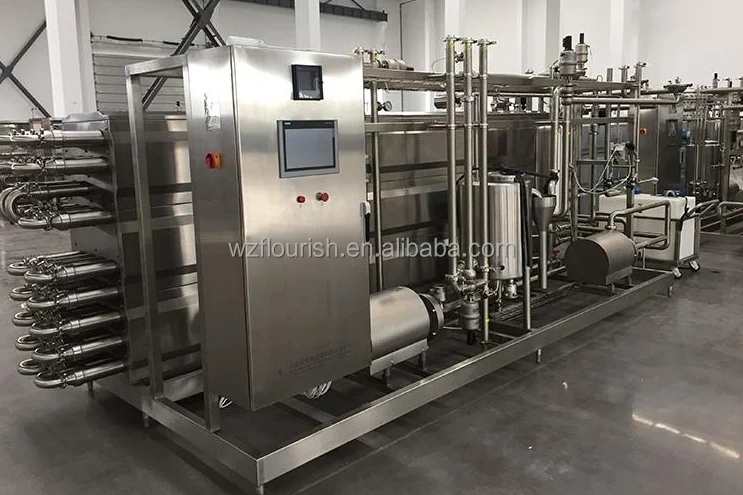

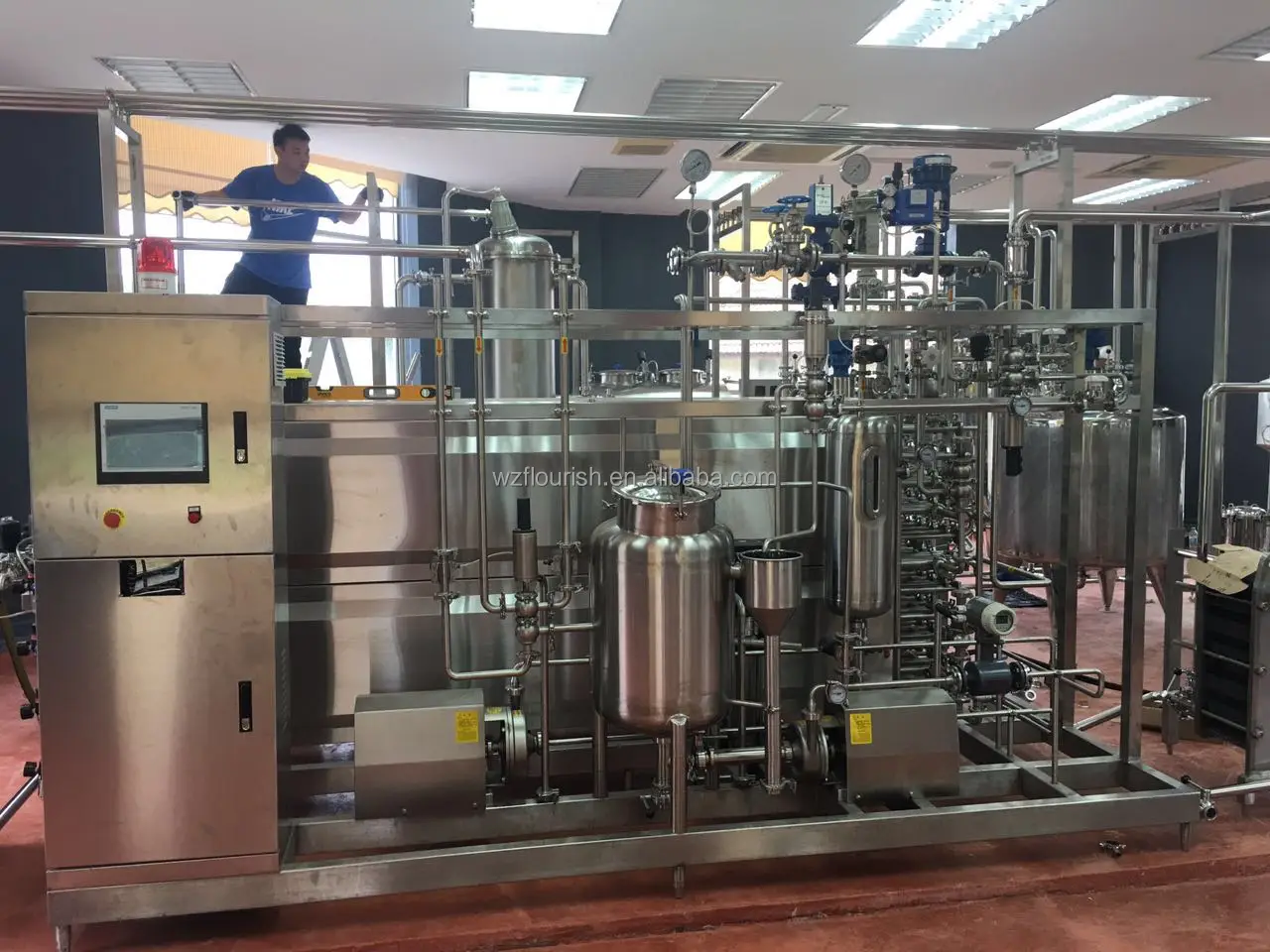

Automatic Tubular Type UHT Pasteurizer

Product Description

Tube sterilizer is an efficient sterilization equipment suitable for sterilization treatment in industries such as food, medicine, cosmetics, etc. The main principle is to create a high-temperature and high-pressure environment by heating the medium (such as steam) inside a closed container, killing or deactivating the bacteria inside the sterilized object, and achieving a thorough sterilization effect. Meanwhile, the sturdy sealed container and circulating mixing equipment also make the operation of the tube sterilizer safer and more reliable. This device indirectly heats the material to flow inside the tube, while the heating medium flows outside the tube, conducting heat exchange through the tube wall, thereby achieving the temperature and maintenance time required for sterilization of the material. During the sterilization process, if the material has not reached the sterilization temperature or time, it can be re sterilized through a reflux tube to ensure the sterilization effect.
The application range of tube sterilizers is wide, including but not limited to the heat treatment of various dairy products, fruit juices, beverages, etc. Its advantages include high thermal efficiency, mild heating, high degree of automation, precise and reliable sterilization temperature control, and strong system safety. In addition, the design of the tubular sterilizer emphasizes personal and equipment safety, with pressure protection measures and alarm systems for steam, hot water, materials, etc., ensuring operational safety and equipment reliability.



Specifications

1. Material : SUS304/316

2. Capacity/Flow: 1~20T/H

3. Motor power: 1.9-11KW

4. quick sterilizing for food fluid



Capacity

(t/h)

Steam Consumption (kg/h)

Steam Pressure (bar)

Power

(kw)

Dimension

(L*W*H)

Weight

(kg)

1

130

2.5

1.9

3.3×1.6×1.8

1490

2

260

2.5

2.1

3.3×1.6×1.8

1590

3

390

2.5

3.0

3.5×1.8×2.0

1630

4

520

2.5

3.0

3.5×1.8×2.0

1870

5

650

2.5

3.0

3.5×1.8×2.0

2060

6

780

2.5

3.0

3.5×1.8×2.0

2250

8

1040

2.5

3.7

4.5×2.0×2.0

2500

10

1300

2.5

5.2

4.5×2.0×2.0

2800

      15

1950

2.5

7.0

6.5×2.0×2.2

3500

 20

2600

2.5

11.0

6.5×2.0×2.2

4300













































Machinery detailes
