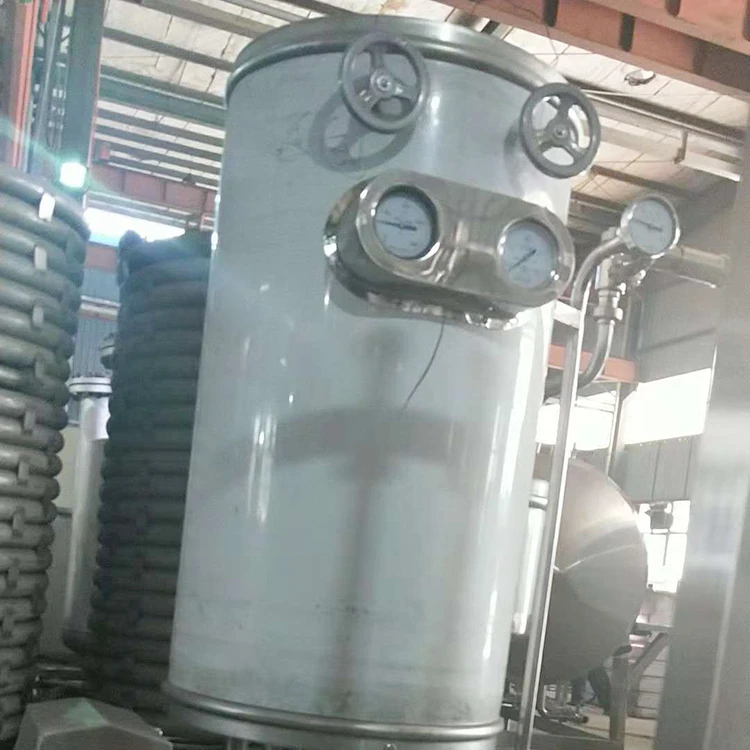

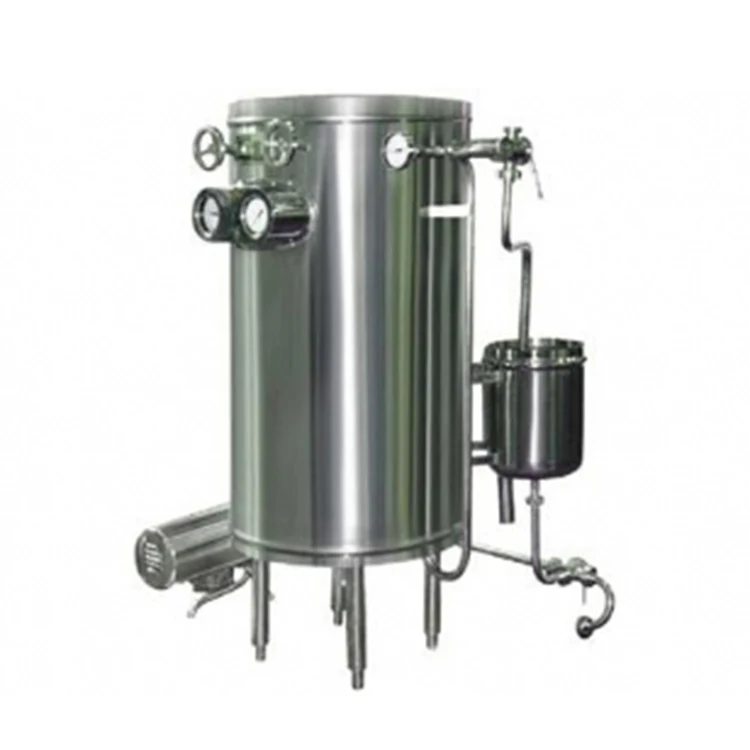

Automatic Stainless Steel UHT Coil type Sterilization Machine

Product Description

Specifications

1 International advanced level 2 High quality milk sterilizing machine 3 Favorable factory price 4 High reputation



Brief introduction

The ultra-high temperature instant milk sterilizing machine is applicable to high temperature instant sterilization of liquid materials such as milk,soy milk and fruit juice etc.It has such features as high efficiency,energy saving,simple operation and good sterilizing effect etc.



Technical Parameters



Model name UHT-1 UHT-2 UHT-4 UHT-6
Production capacity(kg/h) 800-1000 1600-2000 3200-4000 4800-6000
Sterilizing time(s) 4-6S 4-6S 4-6S 4-6S
Sterilizing temperature 115~135 °C 115~135°C 115~135 °C 115~135°C
Steam pressure(MPa) <0.4 <0.4 <0.5 <0.5
Steam consumption(kg/l) 0.15 0.15 0.15 0.15
Material outlet temperature 45-85 °C 45-85 °C 45-85 °C 45-85 °C
Pump power(kw) 1.5 2.2 4 5.5
Dimension(cm)
1314*925*1650
1500*1050*1800
1750*1350*2000
1400*1400*2000
weight 430KG 450KG 670KG 850KG
